Custom Aluminum Extrusion Services
At ZH Precision, we provide end-to-end custom aluminum extrusion services — from die design and alloy selection to extrusion, CNC machining, and finishing. Whether you need standard profiles or complex custom aluminum extrusions, we guarantee exceptional dimensional accuracy, high surface quality, and fast turnaround.
- High Quality
- Precision Manufacturing
- 7-Day Delivery.
What Is Aluminum Extrusion?
Aluminum extrusion is a precision forming process that pushes heated aluminum billets through a hardened steel die to produce continuous profiles with consistent cross-sections. The process allows for complex geometries with tight tolerances, combining lightweight strength, excellent conductivity, and superior corrosion resistance — ideal for applications such as frames, enclosures, and heat sinks.
At ZH Precision, we utilize advanced extrusion presses, precision die engineering, and controlled thermal processes to manufacture both standard and custom aluminum profiles. Our in-house capabilities — including CNC machining, surface finishing, and quality inspection — ensure exceptional dimensional accuracy, surface integrity, and production efficiency for projects of any scale.
Standard Aluminum Extrusion Profiles
Standard aluminum extrusion profiles refer to a range of common aluminum shapes typically used for structural framing, mechanical assemblies, support systems, and more. Each shape serves a specific function, offering unique benefits to meet diverse engineering requirements. Common profiles include circular, square, T-shaped, L-shaped, and C-shaped, with each shape customizable to suit specific mechanical, structural, or aesthetic needs.
- T-Slot
- Aluminum Angles
- T-Bars, H-Bars, Z-Bars
- Beams
- U-Channels
- Hat Channels
- Rectangular Tubes
- Round Tubes & Pipes
These profiles are manufactured to tight tolerances and can be customized with different finishes (such as anodizing or powder coating) for enhanced durability and aesthetics.
Custom Aluminum Extrusion Profiles
We specialize in creating custom aluminum extrusion profiles to meet your specific needs. Our precision-engineered profiles offer strength, lightweight design, and corrosion resistance, making them ideal for a wide range of applications, from structural components to decorative trims.

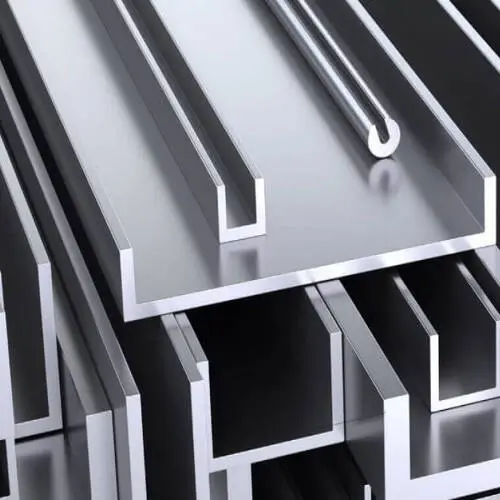

Aluminum channels

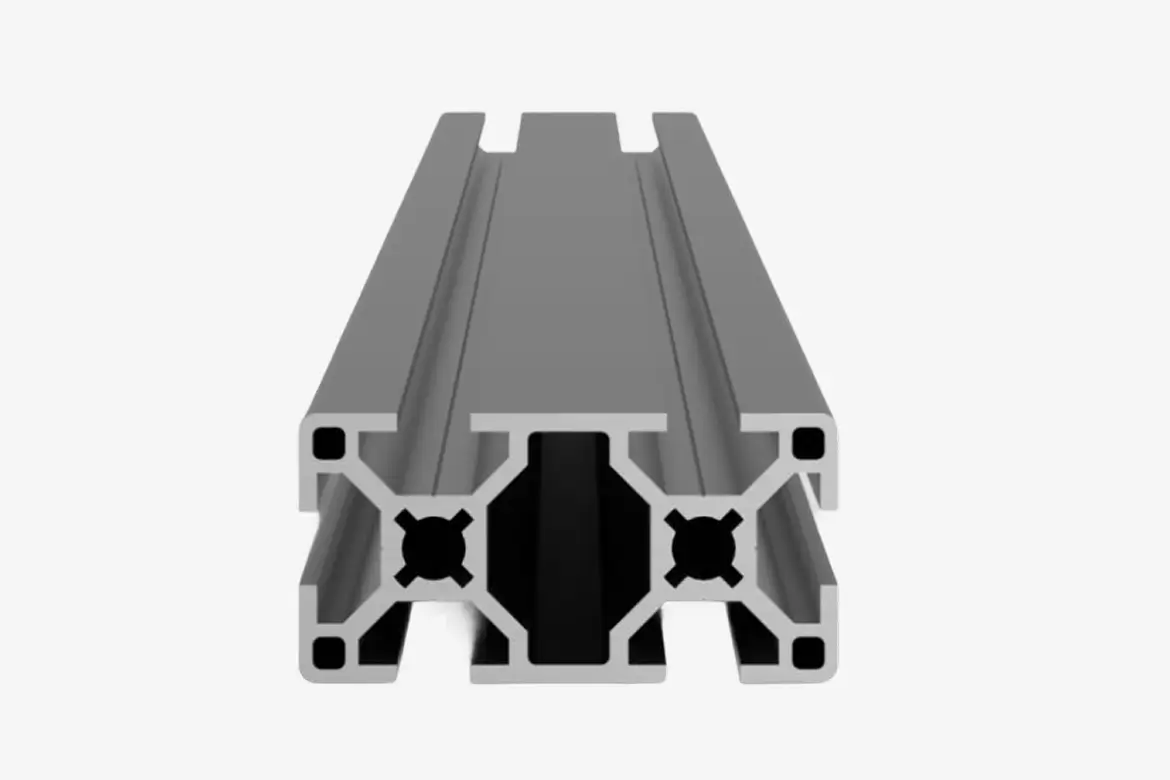

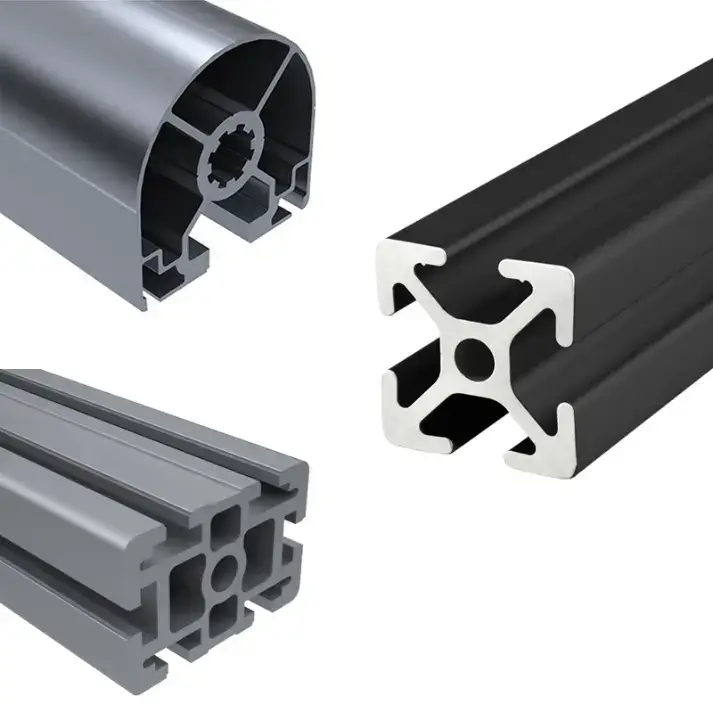

Extruded Aluminum

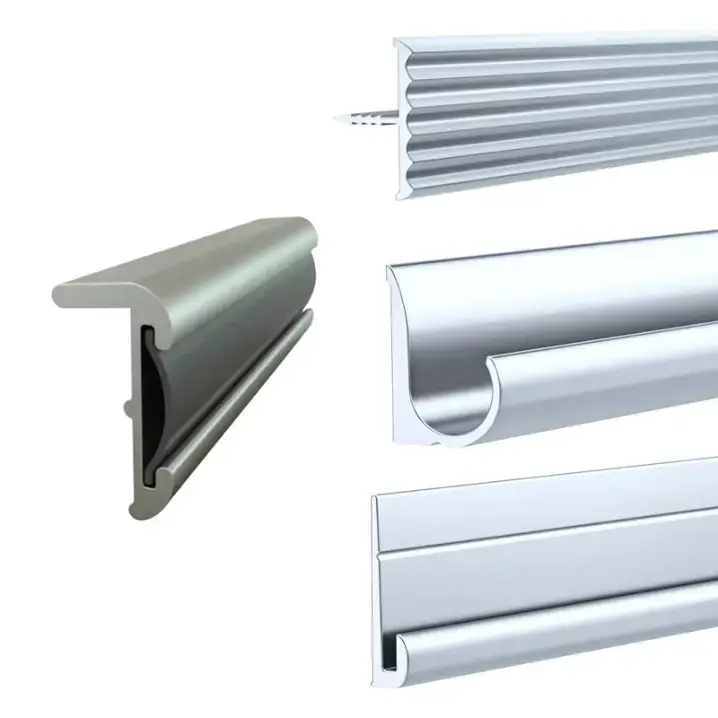

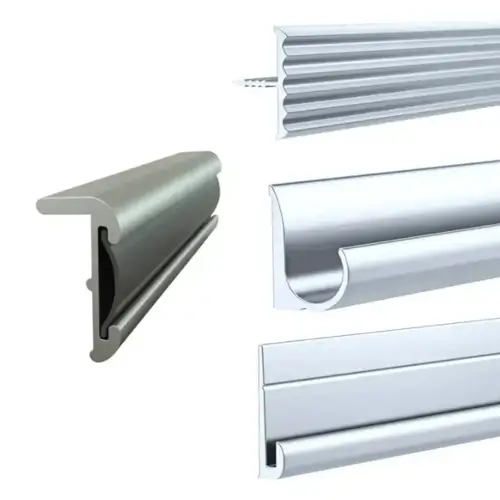

Aluminum Trim
Custom Aluminum Extrusion Parts Showcase
ZH Precision produces custom aluminum extrusion parts with high precision and durability. From heat sinks to structural frames and decorative trims, our parts meet diverse industrial needs with consistent quality.
Standard Profile Sizes
Standard aluminum extrusion sizes provide a variety of cross-sectional dimensions to accommodate various engineering and design needs. The sizes range from small profiles for lightweight frames and brackets to large profiles for heavy-duty structural and mechanical components. By selecting the appropriate size, you can ensure the optimal balance of strength, weight, and cost for your project. Standard sizes range from 10mm x 10mm to 160mm x 160mm, with customization options available based on specific project requirements.
| Standard Size | Description |
|---|---|
| 10mm x 10mm | Compact and small size, ideal for lightweight frames or structural components. |
| 20mm x 20mm | Versatile size used for small-to-medium applications in framing and structural designs. |
| 30mm x 30mm | Popular size for various industrial and architectural applications, offering medium strength. |
| 40mm x 40mm | Commonly used for stronger structural frames and heavy-duty components. |
| 45mm x 45mm | Ideal for more robust frames and applications where higher strength is required. |
| 50mm x 50mm | Provides more stability and is used for larger-scale framing systems and support structures. |
| 60mm x 60mm | Widely used in heavy-duty structural frames and mechanical systems, offering increased strength and stability. |
| 80mm x 80mm | Heavy-duty size used for large industrial systems and load-bearing components. |
| 100mm x 100mm | Used for high-strength applications, particularly in large-scale industrial and mechanical systems. |
| 160mm x 160mm | Extra-large size used for extreme load-bearing and structural applications requiring maximum strength and stability. |
Available Aluminum Alloys for Extrusion
At ZH Precision, we offer a range of high-quality aluminum alloys specifically suited for extrusion processes. These alloys provide the strength, corrosion resistance, and flexibility needed for various applications across industries. Whether you’re producing structural components, frames, or heat sinks, selecting the right aluminum alloy is crucial for ensuring the final product meets your performance and durability requirements.

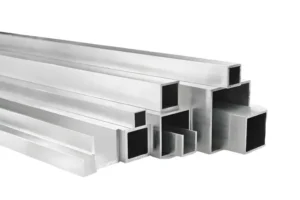

6061 Aluminum Alloy
Known for its excellent strength-to-weight ratio, 6061 is a versatile alloy with great machinability and corrosion resistance. It’s widely used in aerospace, automotive, and construction industries.

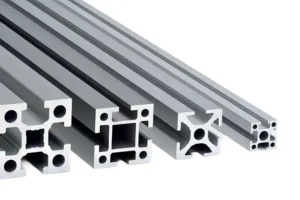

6063 Aluminum Alloy
This alloy is ideal for applications requiring intricate shapes and good surface finish. It is commonly used in architectural, structural, and transportation applications, providing a smooth and aesthetic appearance.

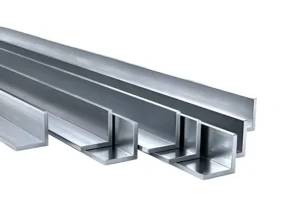

7075 Aluminum Alloy
With superior strength and low weight, 7075 is often used in aerospace and military applications. It offers excellent performance under high-stress conditions but may be more challenging to extrude due to its high strength.

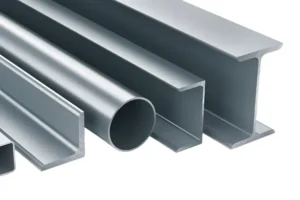

1100 Aluminum Alloy
Known for its high corrosion resistance and excellent formability, 1100 is a great option for applications in food processing, chemical handling, and decorative products. It’s ideal for thinner profiles.
Post-Machining Solutions for Aluminum Profiles
Post-machining enhances aluminum profiles by refining their dimensions, improving surface quality, and ensuring a precise fit for specific applications. From CNC milling to drilling and tapping, these processes optimize the performance and functionality of your aluminum parts.
| Post-Machining | Surface Texture | Description | Application |
|---|---|---|---|
| Cutting | Smooth | Cuts profiles to precise lengths with minimal edge roughness. | Structural Components, Automotive |
| Drilling | Smooth to Rough | Creates holes with precise depth and spacing for assembly. | Mechanical Assemblies, Fixtures |
| Milling | Textured, Smooth | Shapes profiles to custom dimensions and features. | Custom Parts, Automotive Components |
| Turning | Smooth | Produces cylindrical parts by rotating against a cutting tool. | Shafts, Cylindrical Parts |
| Grinding | Smooth to Rough | Removes surface imperfections, leaving a fine finish. | Precision Parts, Tooling |
| Boring | Smooth | Enlarges existing holes with high precision. | Industrial Machinery, Aerospace |
| Tapping | Threaded | Creates threads for fastening in drilled holes. | Assemblies, Automotive Components |
| Deburring | Smooth | Removes sharp edges and burrs for a smooth finish. | Final Product Finishing, Metal Parts |
Aluminum Extrusion Applications
Aluminum extrusion is widely used across industries for its lightweight strength, corrosion resistance, and design flexibility. At ZH Precision, our custom aluminum profiles are engineered for performance, durability, and precision, making them ideal for a wide range of end-use applications:
- Heat sinks and electronic enclosures for efficient thermal management
- LED lighting profiles designed for heat dissipation and modern aesthetics
- Automotive components such as frames, brackets, and structural parts
- Aerospace elements including lightweight interior and support structures
- Window and door frames for architectural and construction projects
- Solar panel frames and renewable energy system supports
- Industrial machinery and conveyor systems for manufacturing
- Wind turbine components for high strength and corrosion resistance
- Furniture, display racks, and retail fixtures for commercial use
- Bicycle frames and home appliances combining strength and style
ZH Precision provides end-to-end aluminum extrusion solutions — from prototype to mass production — ensuring consistent quality, precision, and performance across every application.
Aluminum Extrusion Services FAQ
Aluminum extrusion is a versatile manufacturing process used to create precise, durable, and lightweight components for a wide range of industries. Below are some of the most frequently asked questions about our aluminum extrusion capabilities and services.
A:ZH Precision provides complete aluminum extrusion solutions — from die design and extrusion to CNC machining, surface finishing, and assembly. Managing the entire process in-house ensures tighter quality control, faster lead times, and cost efficiency for every project.
A：The cost is influenced by several factors, including labor, tooling and die expenses, surface finishing, production volume, and post-processing. ZH Precision optimizes each stage to deliver tailored and cost-effective extrusion solutions.
A：The most common alloys used for extrusion are 6061, 6063, 7075, and 1100. Each offers different strengths and surface qualities — 6063 for excellent finish and corrosion resistance, 6061 for higher strength, and 7075 for aerospace-grade performance.
A：ZH Precision offers a variety of finishes including anodizing, powder coating, brushing, and mill finish. Each treatment enhances appearance, durability, and corrosion resistance depending on the application.
A：Lead time depends on profile complexity and finishing requirements, but most standard extrusion projects can be completed within 7 to 15 days. Our streamlined process and in-house capabilities allow for faster turnaround without compromising quality.
