Design for Manufacturability (DFM) Services
ZH Precision’s DFM services help optimize part designs, reduce production risks, and improve manufacturability for CNC prototyping, die casting, sheet metal fabrication, and aluminum extrusion. Get actionable recommendations to accelerate production and cut costs.
- Geometry Optimization
- Tolerance Analysis
- Material Selection
- Manufacturing Feasibility
- Surface Finishing Compatibility
Verify Certifications On Demand：ISO 9001:2015 | IATF 16949:2016
Get a Free DFM Assessment
STP I SLDPRT I IPT I PRT I SAT FLES
All uploaded content is secure and confidential.
What is Design for Manufacturability (DFM)
Design for Manufacturability (DFM) is an engineering practice that focuses on designing products to be easier to manufacture, cost-effective, and consistently high in quality. Its primary goal is to streamline manufacturing by optimizing product design, thereby reducing production costs and minimizing the risk of defects. When DFM principles are applied early in the design phase, companies can achieve significant cost savings, improve product quality, and accelerate time to market.
Why DFM is Important in Product Development
Implementing Design for Manufacturability (DFM) early in the product development cycle is crucial for CNC machining. By evaluating tool access, reducing complex setups, and preventing areas prone to deflection or stress concentration, engineers can ensure that CNC parts are manufacturable, maintain consistent quality, and reduce production errors. Early DFM consideration helps accelerate prototyping and small-batch production while keeping project timelines on track.
For die casting, applying DFM principles ensures proper wall thickness, draft angles, and uniform material flow, minimizing porosity, warping, and other common defects in cast parts. Addressing these challenges during the design stage improves the reliability of die-cast components, reduces scrap rates, and shortens lead times. This approach saves both time and cost across the entire production process, delivering high-quality, custom die-cast and CNC parts that meet exacting standards.
Why Choose ZH Precision for DFM Services
At ZH Precision, we maintain clear and consistent communication throughout every project, keeping customers informed at each stage to ensure alignment, timely updates, and responsive support.
High Quality Parts
ZH Precision is certified to ISO 9001 and IATF 16949 standards, with quality management at the core of our manufacturing processes. We take a customer-focused approach to ensure consistent quality, reliable delivery, and project success.
Customer First
We take a customer-focused approach by understanding project requirements, maintaining clear communication, and providing responsive engineering and production support throughout the manufacturing process.
Engineering Support
Our engineering team leverages over 15 years of combined experience, providing DFM analysis with every machining and die casting quote, and assigning a dedicated project engineer to ensure smooth execution and risk mitigation.
Integrating DFM into Production
Integrating DFM services into the production process requires a collaborative approach between design and manufacturing teams. At ZH Precision, we emphasize early involvement of our DFM experts during the product design stage to identify potential manufacturing challenges before they affect production. By applying DFM principles from the start, we optimize part geometry, select suitable materials, and recommend efficient manufacturing methods. This proactive approach ensures parts are manufacturable, reduces errors and rework, improves first-pass yield, and accelerates time-to-market while maintaining high quality and cost efficiency.
01 Design Review

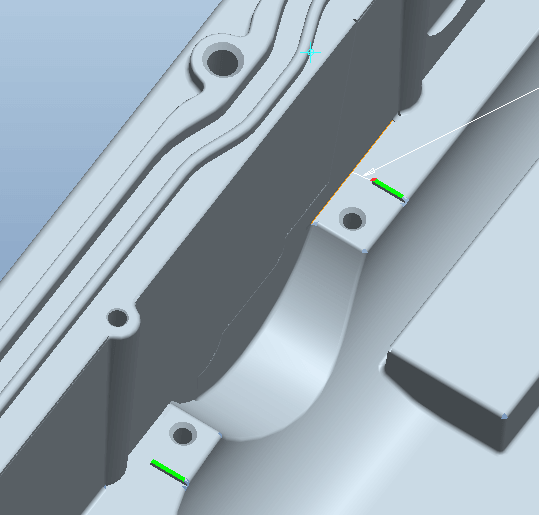

Our engineers perform comprehensive design reviews to evaluate part geometry, tolerances, materials, and assembly methods. This process identifies potential manufacturing challenges such as undercuts, thin walls, tight tolerances, or complex features. By addressing these issues early, we reduce errors, save time, and support rapid iterations. Applying DFM services ensures your designs are fully optimized for manufacturability, cost-efficiency, and quality before production begins.
02 Material & Process Evaluation
Selecting the right material and manufacturing process is critical for part performance, durability, and cost control. Our team evaluates material behavior, recommends suitable options, and identifies potential process-related defects before production begins. Implementing DFM services ensures your parts are production-ready, functionally reliable, and optimized for cost-effective manufacturing, minimizing surprises during scaling up.
03 Tolerance Optimization
Critical tolerances and geometric features are fine-tuned to balance manufacturability with functionality. We consider tooling limitations, assembly requirements, and post-processing needs to ensure parts perform reliably and maintain both visual and functional quality. Utilizing DFM services guarantees precision while avoiding unnecessary production challenges, enabling high first-pass yield and consistent quality in full-scale manufacturing.
04 Final Recommendations
After reviewing designs and evaluating prototype feedback, our engineers provide actionable recommendations to finalize the design. This ensures parts are optimized for efficient production, cost-effectiveness, and high-quality finishes. Implementing DFM services allows manufacturers to confidently scale up production, improve yield, and accelerate product launch, ensuring a competitive advantage in the market.
05 Prototype Validation
Prototypes are produced to validate designs and uncover any remaining manufacturing challenges. Through low-volume rapid iterations, we test fit, function, and performance, ensuring the final design is feasible for production. DFM-driven prototype validation helps reduce risk, confirm design intent, and ensure a smooth transition to large-scale production, saving time and minimizing potential rework.
Ready to Optimize Your Design for Manufacturing?
Simply upload your 3D model or 2D drawing, and let our engineers review your design for actionable DFM recommendations. NDA available upon request to protect your design.
DFM Case Studies
Real-world DFM applications demonstrate how small design improvements can significantly reduce production cost, shorten lead time, and improve product quality. At ZH Precision, our engineers apply practical DFM analysis to optimize part designs across CNC machining, die casting, and sheet metal fabrication.

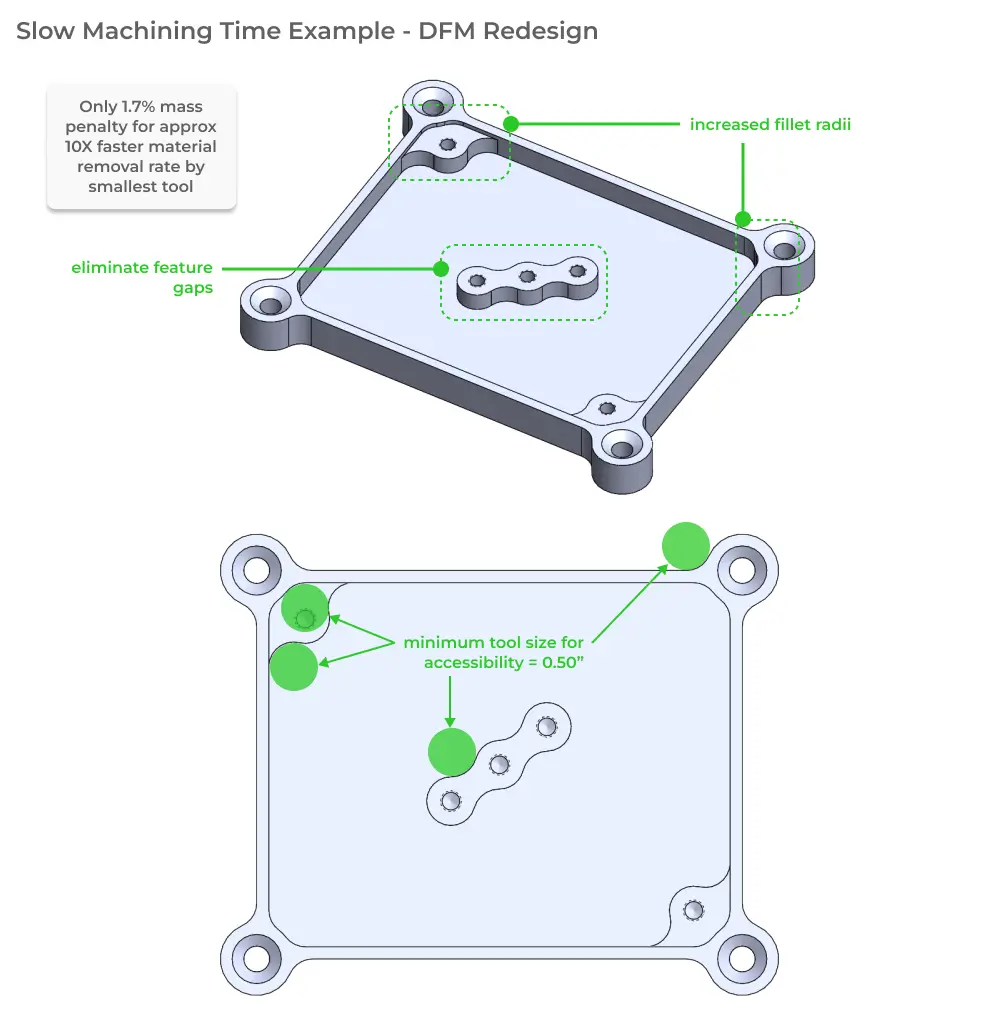

CNC Machined Aluminum Bracket Optimization
A client designed a complex aluminum bracket with deep pockets, sharp internal corners, and unnecessarily tight tolerances. These features increased machining time and tool wear, resulting in higher costs and longer lead times.
- Increased internal corner radii to match standard cutting tools
- Reduced excessive tolerance requirements
- Simplified pocket depth and geometry
CNC Machined Aluminum Thin-Wall Enclosure
The original aluminum enclosure was designed with excessively thin walls, leading to deformation during CNC machining and post-processing. This caused dimensional instability, affecting assembly fit and overall product reliability.
- Optimized wall thickness for improved rigidity
- Added ribs and support features in critical areas
- Refined machining strategy to reduce stress and deformation
DFM Capabilities & Benefits
ZH Precision provides comprehensive DFM services designed to help engineers and manufacturers optimize their designs and production processes. Our DFM expertise ensures manufacturability, minimizes production risks, and accelerates your product from prototype to full-scale manufacturing.
Reduce Manufacturing Complexity
Early DFM simplifies part geometry and eliminates unnecessary features, making components easier and more efficient to machine while maintaining design intent.
Improve Production Efficiency
By optimizing designs for machining processes, DFM helps streamline workflows, reduce machining time, and improve overall production efficiency from prototype to batch production.
Enhance Design Feasibility
DFM ensures that your designs are practical and manufacturable, identifying potential challenges early and aligning engineering concepts with real-world production capabilities.
Optimize Material Utilization
Smart material selection and design adjustments reduce waste and improve material usage, ensuring better performance without unnecessary resource consumption.
Ensure Scalable Manufacturing
DFM prepares your design for seamless scaling, ensuring that prototypes can transition smoothly into low-volume or mass production without major redesigns.
Get DFM Feedback in 24 Hours
Our engineers provide fast DFM feedback within 24 hours, helping you optimize designs early and avoid costly delays before machining begins.
Our Manufacturing Services
ZH Precision provides flexible manufacturing services for precision parts, from prototyping to mass production. With DFM applied at every stage, production efficiency, quality consistency, and cost control are effectively ensured.
Prototyping DFM Services
Early-stage design evaluation helps identify manufacturability issues, reduce iterations, and accelerate product development.

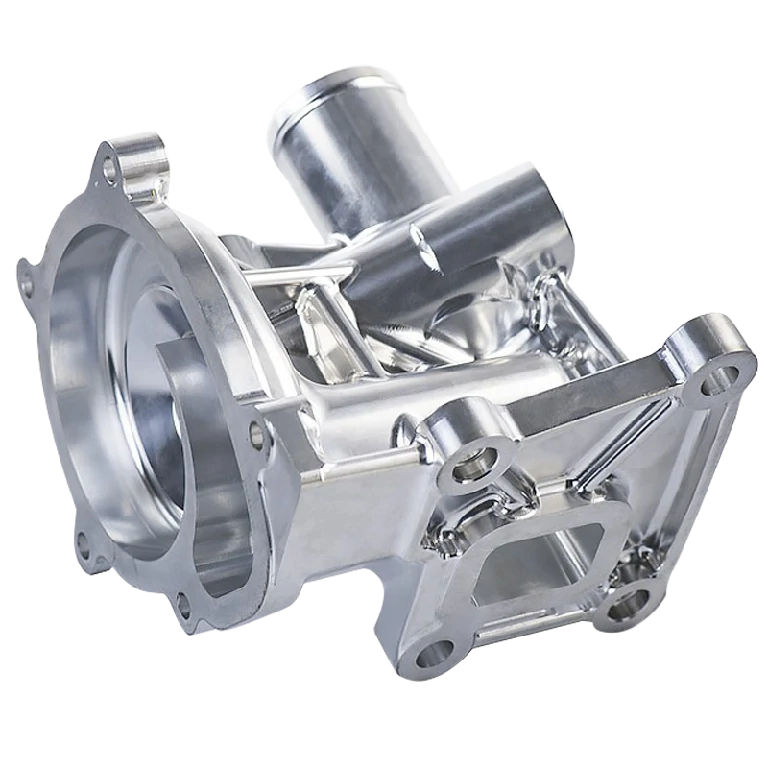

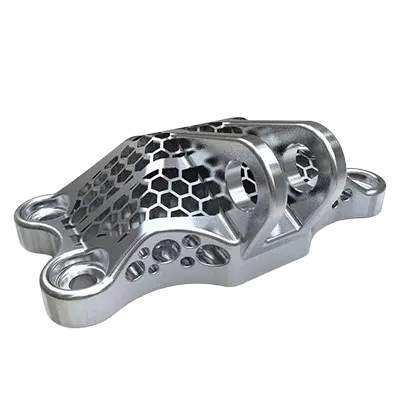

CNC Machining DFM Services
Optimized tool access and machining strategies improve efficiency, dimensional accuracy, and overall part quality.

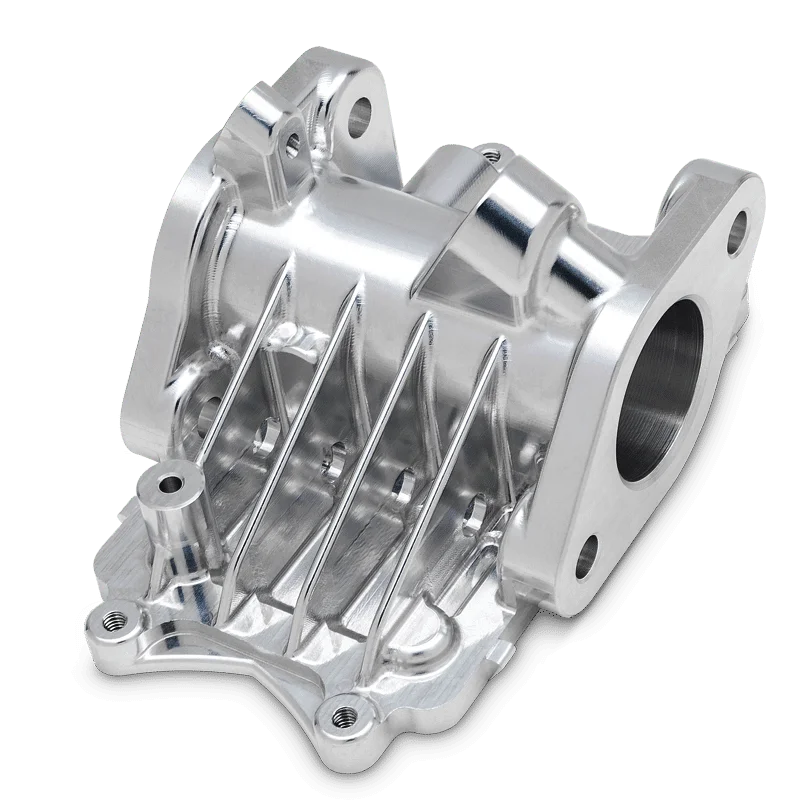

5-Axis CNC Machining DFM Services
Complex geometries are simplified through optimized part orientation, reducing setups while maintaining high precision.

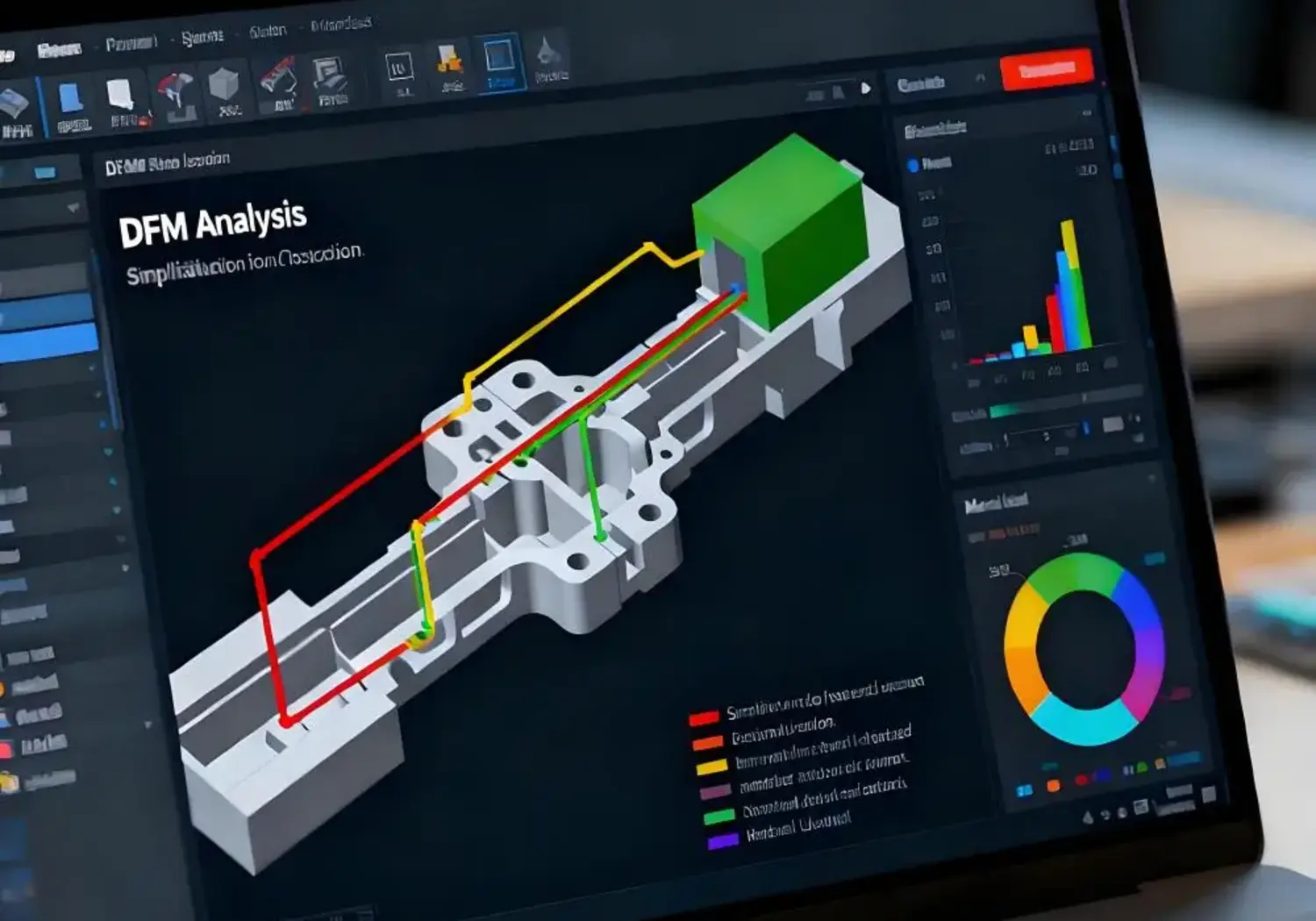

Die Casting DFM Services
Proper wall thickness, draft angles, and material flow are applied to minimize defects and ensure consistent results.

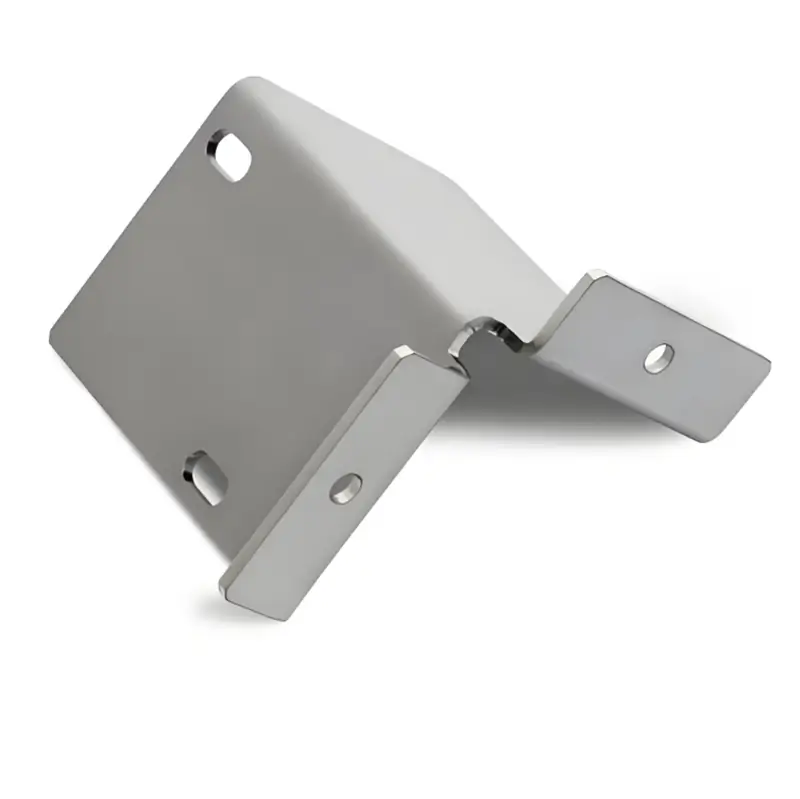

Sheet Metal Fabrication DFM Services
Improved bend design, hole placement, and material utilization enhance manufacturability and production efficiency.

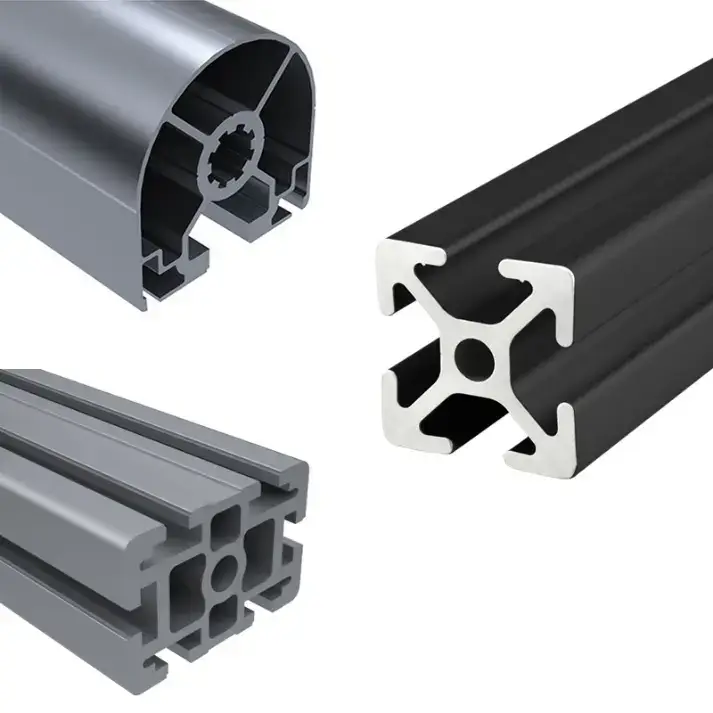

Aluminum Extrusion DFM Services
Refined profile design and tolerances improve structural performance while reducing secondary processing and cost.
Want to Learn More About Our DFM Services and Benefits?
At ZH Precision, we provide comprehensive DFM services to help companies optimize manufacturability, reduce production costs, and improve part quality. Whether you’re developing a new product or refining an existing design, our engineers deliver practical, actionable recommendations tailored for CNC prototyping, die casting, sheet metal fabrication, and aluminum extrusion.
With ISO 9001:2015 and IATF 16949:2016 certifications, we combine proven quality systems with hands-on engineering expertise to help you avoid costly rework, shorten lead times, and ensure your design is production-ready from the start.
Trusted by Leading OEM Manufacturers
ZH Precision is a trusted DFM services partner for global OEMs, including Foxconn, Airspan, Oracle, Juniper Networks, Alnan, and SAGERAN. With established DFM capabilities, consistent engineering guidance, and responsive support, we help our partners optimize designs for manufacturability, reduce production challenges, and ensure smoother transitions from design to full-scale manufacturing.
Frequently Asked Questions
A: Yes. Applying DFM before quoting helps identify design issues that could impact manufacturability, cost, or lead time. This ensures your quote is accurate and avoids unexpected changes or delays once production begins.
A: DFM identifies potential issues such as difficult features, tight tolerances, or unsuitable materials early in the design stage. Addressing these risks in advance helps prevent defects, production delays, and costly rework during manufacturing.
A: DFM recommendations are made to improve manufacturability without compromising functionality. Any suggested changes are discussed with your team to ensure the final design still meets performance and application requirements.
A: Yes. By optimizing the design before production, DFM reduces setup complexity, minimizes revisions, and avoids production interruptions. This results in faster prototyping and more predictable production timelines.
A: A 3D CAD file (such as STEP or IGES) is typically required for a DFM review. Additional information like material requirements, tolerances, and application details helps our engineers provide more accurate and actionable recommendations.
