Medical Device Industry
Precision CNC machining for custom components used in diagnostic equipment, laboratory systems, monitoring devices, medical instruments, and production fixtures, from prototype validation through repeat production.
Quality Certifications
ISO 9001:2015 | IATF 16949:2016
Manufacturing Solutions for the Medical Device Industry
Medical equipment combines mechanical structures, sensors, electronics, fluid systems, and moving assemblies within tightly controlled designs. The components used in these systems often require accurate datum relationships, stable mating surfaces, clean edges, and consistent dimensional accuracy.

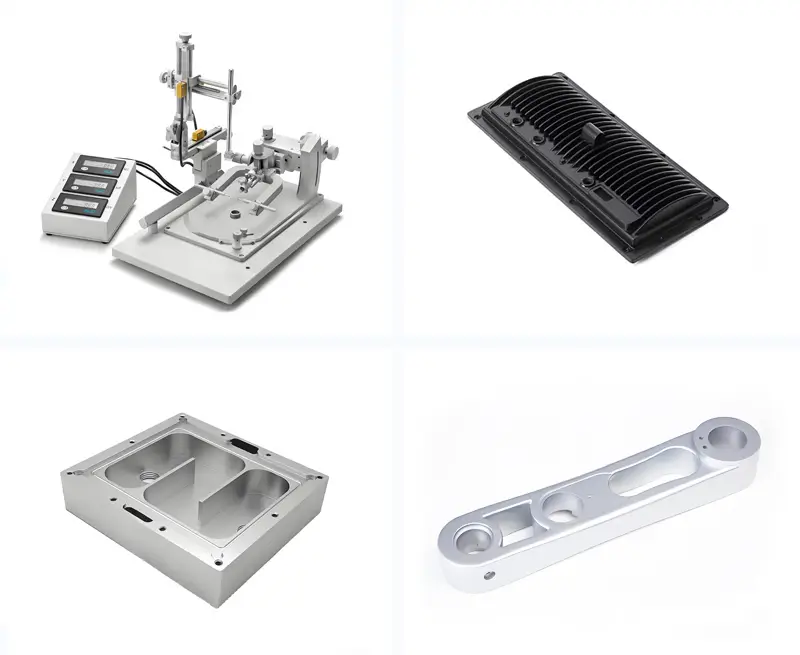

Manufacturing support covers surgical instrument components, diagnostic equipment structures, medical enclosures, medical robotic components, and precision connectors. Aluminum alloys such as 6061 and 7075, along with 304 and 316 stainless steel, support complex geometries, demanding dimensional requirements, and functional surface finishes from prototyping through repeat production.
Medical Device Prototyping and Production Support
Medical device prototyping supports the evaluation of part geometry, fit, function, material, and critical dimensions before production. Manufacturing support covers early prototypes, design revisions, validation builds, and repeat production as the product design progresses.

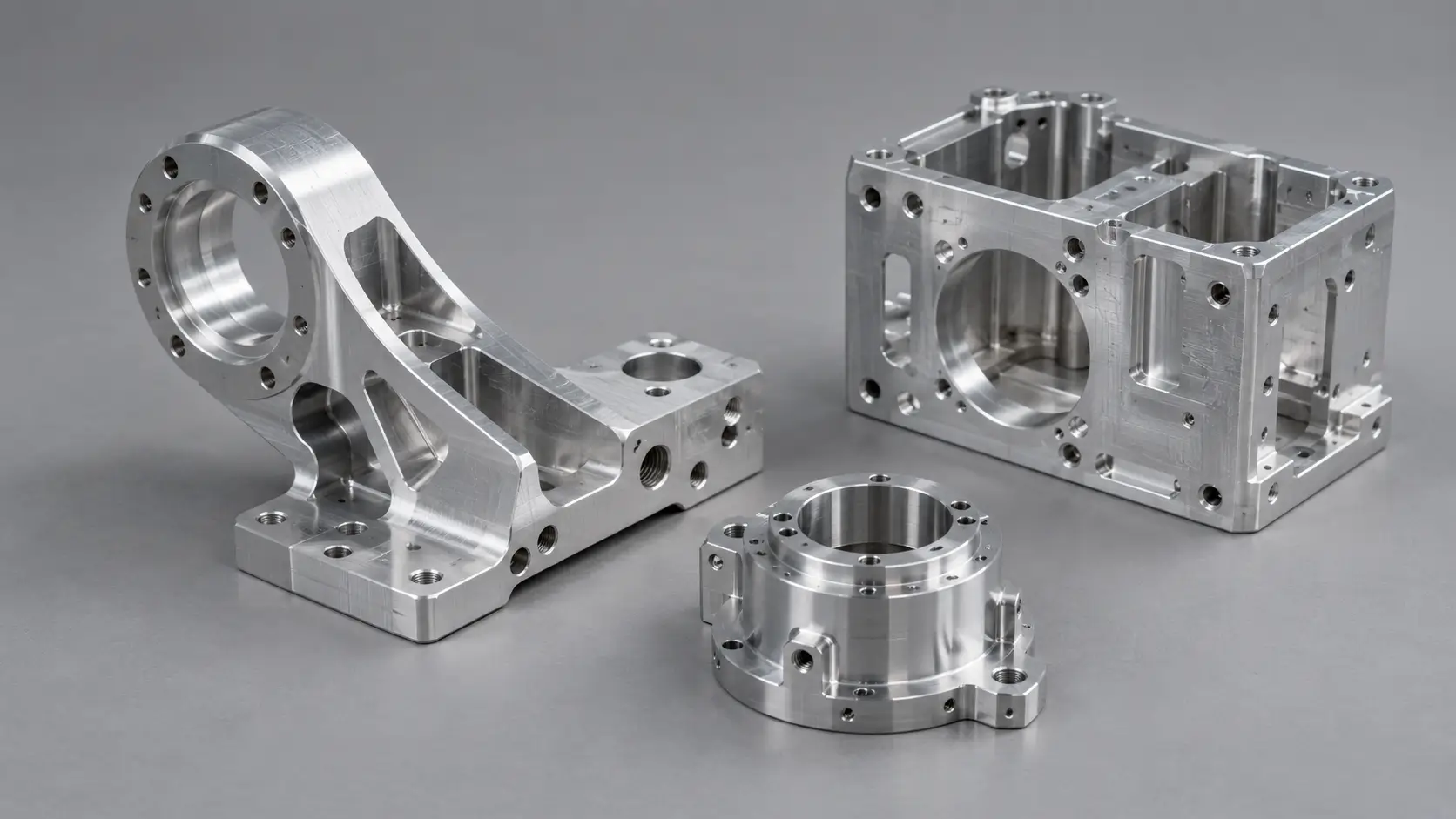

Medical Device Prototype Parts
Build early medical device components to evaluate fit, assembly, clearances, mechanical interfaces, and basic functional requirements. Prototype testing helps identify dimensional, structural, or assembly issues before the design moves into further verification.
Engineering Validation
Evaluate functional components under intended assembly and operating conditions to check alignment, structural performance, mounting interfaces, movement, and interaction with surrounding parts. Results can be used to refine geometry, material choices, and critical features.
Design Verification
Confirm critical dimensions, tolerances, mating features, mounting locations, and functional interfaces using production-representative parts. Inspection and assembly checks help verify that the design meets defined requirements before final release.

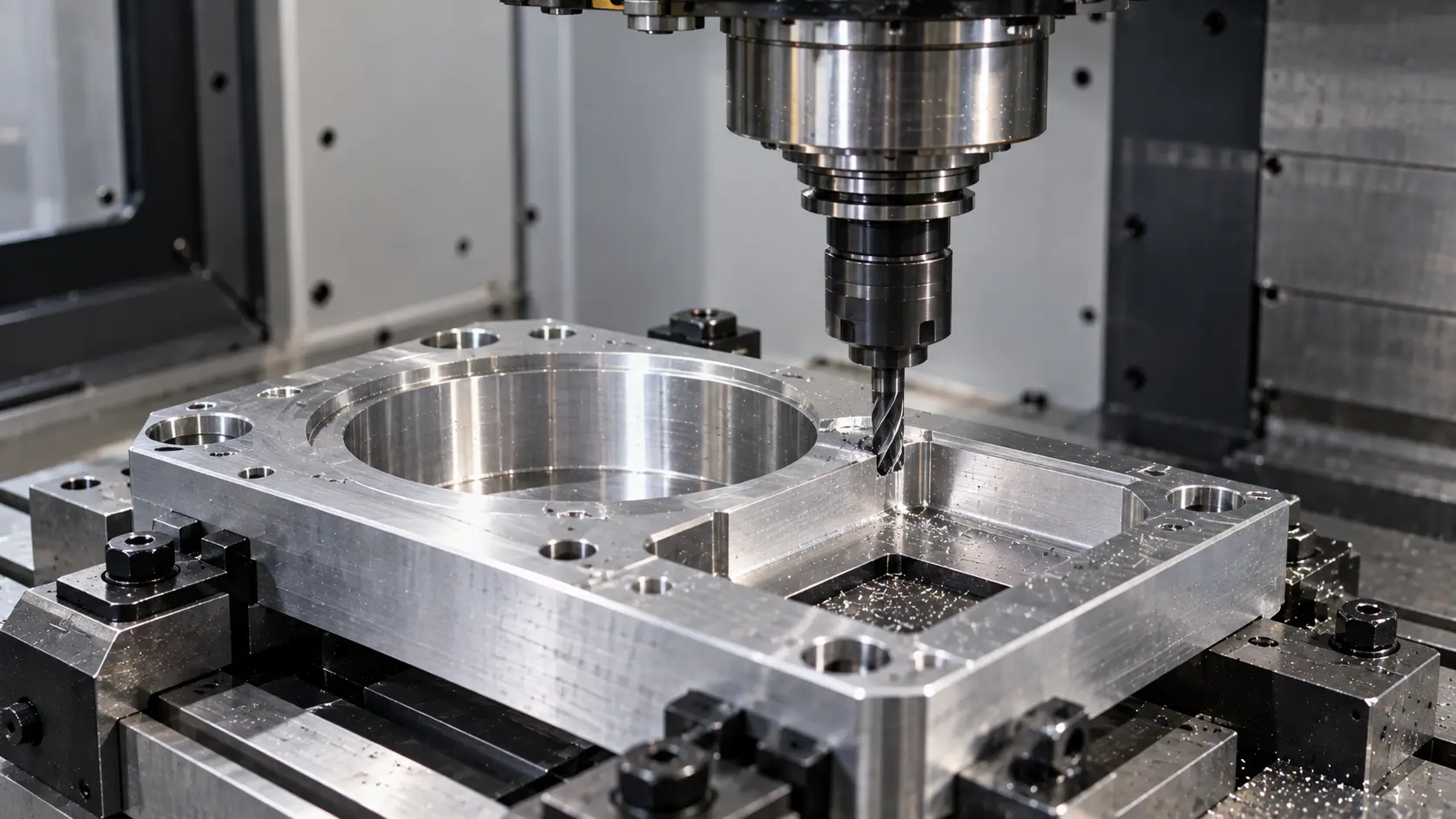

Production Validation
Confirm machining methods, workholding, inspection requirements, surface finishes, and process consistency using the intended production approach. This stage helps identify manufacturing risks before approved components move into repeat production.
Production Manufacturing
Manufacture approved medical device components in controlled low-volume and repeat production with defined machining, inspection, finishing, and documentation requirements. Process controls help maintain consistent dimensions and quality across repeat orders.
Start Your Medical Device Parts Project
Get manufacturing support for custom medical device prototypes and production components with defined material, tolerance, finish, and inspection requirements.
Medical Parts Manufacturing Capabilities
CNC machining produces precision housings and instrument parts, while die casting supports repeat-production metal components. Sheet metal fabrication is used for covers and enclosures, and aluminum extrusion for frames and structural profiles.

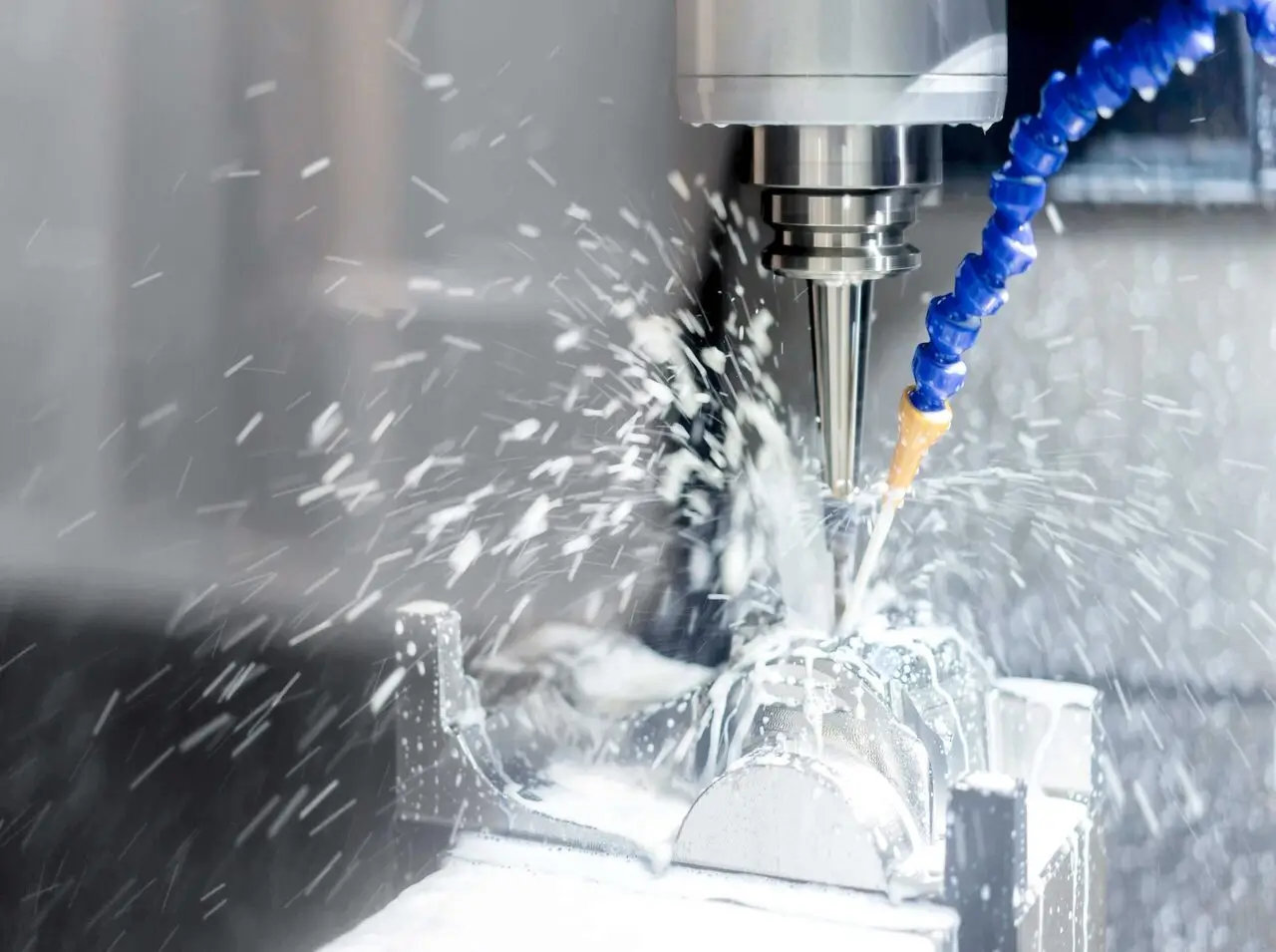

CNC Machining
Precision machining for instrument housings, surgical equipment components, fixtures, mounts, and complex parts with tight dimensional requirements.
Die Casting
Aluminum, zinc, and magnesium die casting for repeat-production housings, covers, frames, and structural components with integrated features.
Sheet Metal Fabrication
Fabrication of medical equipment enclosures, panels, brackets, trays, and covers using cutting, bending, welding, and finishing processes.
Aluminum Extrusion
Custom aluminum profiles for medical equipment frames, guide rails, supports, handles, and other components with consistent cross-sectional geometry.
Materials and Surface Finishes for Medical Parts
Materials
Aluminum, stainless steel, titanium, copper, brass, carbon steel, and alloy steel for housings, instrument parts, fixtures, and structural components.
Surface Finishes
Anodizing, passivation, polishing, bead blasting, powder coating, and plating for corrosion resistance, cleanliness, and appearance.

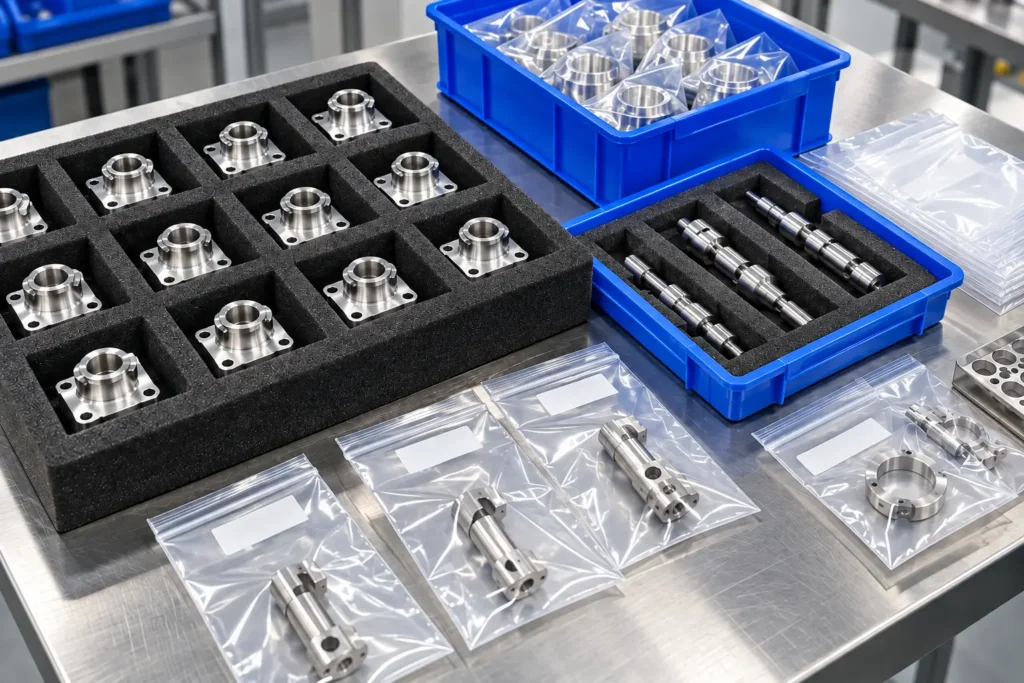

What Medical Parts Can We Manufacture?
Medical and healthcare equipment requires precision components made from different materials and manufacturing processes. We manufacture custom parts and prototypes for diagnostic, laboratory, surgical, and rehabilitation equipment, including
- Medical Device Housings
- Diagnostic Equipment Enclosures
- Surgical Instrument Components
- Endoscope Housings and Mounts
- Robotic Surgery Brackets
- Imaging Equipment Mounts
- Sensor Housings
- Optical Mounts
- Fluid Manifolds
- Valve and Pump Bodies
- Instrument Mounting Plates
- Equipment Frames
- Linear Guide Components
- Control Panel Enclosures
- Laboratory Fixtures
- Rehabilitation Equipment Parts
Why Choose ZH Precision for Medical Equipment Parts?
ZH Precision supports medical equipment manufacturers with engineering assistance, rapid prototyping, precision manufacturing, and scalable production. Multiple manufacturing processes and dimensional inspection support custom components with demanding tolerance, consistency, and documentation requirements.
Capabilities
CNC machining, die casting, sheet metal fabrication, and aluminum extrusion support different part geometries, materials, and production requirements.
Inspection
An ISO 9001:2015-certified quality system and CMM inspection help verify critical dimensions and maintain consistent quality across repeat production.
Production
Manufacturing support covers prototypes, validation builds, low-volume orders, and repeat production as medical equipment projects progress.
Traceability
Material certificates, inspection reports, and production records can be provided when required to support quality control and part traceability.
Frequently Asked Questions
ZH Precision manufactures precision housings, instrument components, fluid manifolds, sensor mounts, brackets, fixtures, equipment panels, structural frames, and other custom parts for diagnostic, laboratory, surgical, and rehabilitation equipment.
Available processes include CNC machining, die casting, sheet metal fabrication, and aluminum extrusion. The appropriate process depends on the component geometry, material, tolerance, production quantity, and functional requirements.
Common materials include aluminum, stainless steel, titanium, engineering plastics, copper, and brass. Material selection depends on strength, weight, corrosion resistance, dimensional stability, surface requirements, and the component’s operating environment.
An ISO 9001:2015-certified quality system supports incoming material inspection, first article inspection, in-process checks, CMM measurement, and final inspection. Critical dimensions are verified against the approved drawing before shipment.
Material certificates, dimensional inspection reports, first article inspection records, and other production documents can be provided when specified in the quotation.
Part geometry, material, tolerances, surface finish, inspection requirements, and order quantity all affect manufacturing cost. Providing a 3D CAD model and a controlled drawing helps produce a more accurate quotation.
